通知
我公司即日起，陶瓷标定板产品升级，价格上涨，请所有代理经销商做好调价，后期按照升级产品价格出售。
东莞市畦达光电科技有限公司
型号 | 名称 | 有效图形（mm） | 阵列 | 中心距 （mm） | 圆点直径 （mm） | 精度（mm） |
C5X5-7X7-0.625-0.3125 | 标定板 | 5X5 | 7X7 | 0.625 | 0.3125 | 0.001 |
C6X6-7X7-0.75-0.375 | 标定板 | 6X6 | 7X7 | 0.75 | 0.375 | 0.001 |
C8X8-7X7-1-0.5 | 标定板 | 8X8 | 7X7 | 1 | 0.5 | 0.001 |
C10X10-7X7-1.25-0.625 | 标定板 | 10X10 | 7X7 | 1.25 | 0.625 | 0.001 |
C15X15-7X7-1.875-0.9375 | 标定板 | 15X15 | 7X7 | 1.875 | 0.9275 | 0.001 |
C20X20-7X7-2.5-1.25 | 标定板 | 20 X20 | 7X7 | 2.5 | 1.25 | 0.001 |
C25X25-7X7-1.5625-3.125 | 标定板 | 25X25 | 7X7 | 1.5625 | 3.125 | 0.001 |
C30X30-7X7-3.75-1.875 | 标定板 | 30X30 | 7X7 | 3.75 | 1.875 | 0.001 |
C40X40-7X7-5-2.5 | 标定板 | 40X40 | 7X7 | 5 | 2.5 | 0.001 |
C50X50-7X7-6.25-3.125 | 标定板 | 50X50 | 7X7 | 6.25 | 3.125 | 0.001 |
C 60X60-7X7-7.5-3.75 | 标定板 | 60X60 | 7X7 | 7.5 | 3.75 | 0.001 |
C 80X80-7X7-10-5 | 标定板 | 80X80 | 7X7 | 10 | 5 | 0.001 |
C100X100-7X7-12.5-6.25 | 标定板 | 100X100 | 7X7 | 12.5 | 6.25 | 0.001 |
C100X100-7X7-12.5-6.25 | 标定板125 | 127X127 | 7X7 | 12.5 | 6.25 | 0.001 |
C100-15x15-6-3 | 标定板 | 87X87 | 15x15 | 6 | 3 | 0.001 |
C100-4-2 | 标定板 | 100 X100 | 24 X24 | 4 | 2 | 0.001 |
C18.25X18.25-18X18-0.5-1 | 标定板 | 18.25X 18.25 | 18 X18 | 1 | 0.5 | 0.001 |
C8.1X8.1-41X41-0.2-0.1 | 标定板 | 8.1X8.1 | 41X41 | 0.2 | 0.1 | 0.001 |
C12.2X12.2-31X31-0.4-0.2 | 标定板 | 12.2X12.2 | 31X31 | 0.4 | 0.2 | 0.001 |
2016.06.04

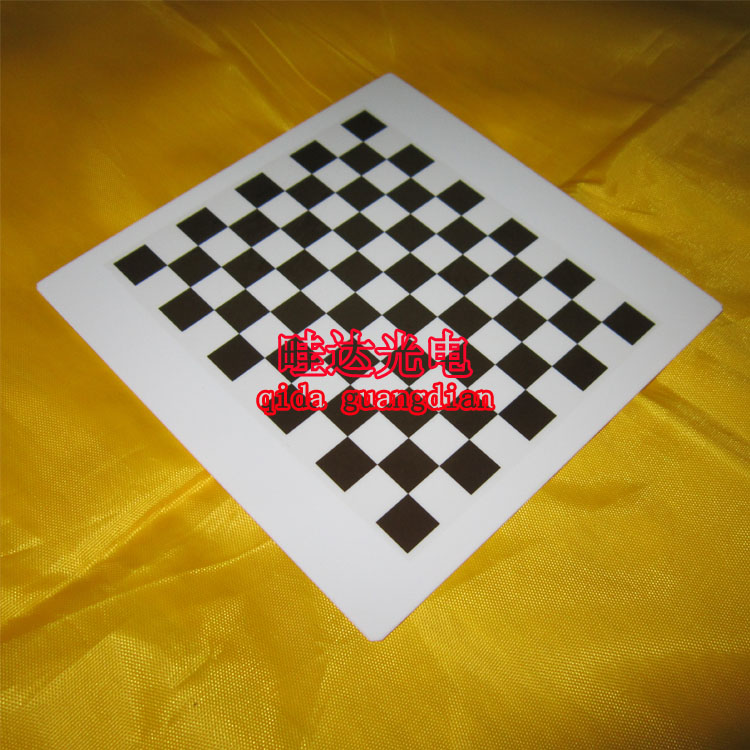

型号 | 名称 | 有效图形（mm） | 阵列 | 方格尺寸 （mm） | 精度 （mm） |
S 6X6-21X21-0.25X0.25-bk | 标定板 | 6X6 | 21 X21 | 0.25 X0.25 | 0.001 |
S 12X12-21X21-0.5X0.5-bk | 标定板 | 12X12 | 21 X21 | 0.5 X0.5 | 0.001 |
S 24X24-21X21-1X1-bk | 标定板 | 24 X24 | 21 X21 | 1 X1 | 0.001 |
S 30X30-30X30-2X2-bk | 标定板 | 30 X30 | 15 X15 | 2 X2 | 0.001 |
S 72X72-21X21-3X3-bk | 标定板 | 72 X72 | 21 X21 | 3 X3 | 0.001 |
S 96X96-21X21-4X4-bk | 标定板 | 96X96 | 21 X21 | 4X4 | 0.001 |
S 120X120-21X21-5X5-bk | 标定板 | 120 X120 | 21 X21 | 5 X5 | 0.001 |
无边框 |
S5.5X5.5 | 标定板 | 5.5X5.5 | 1X1 | 5.5X5.5 | 0.001 |
S0.25X0.25-10X10-0.025X0.025 | 标定板 | 0.25X0.25 | 10X10 | 0.025X0.025 | 0.001 |
S0.5X0.5-10X10-0.05X0.05 | 标定板 | 0.5X0.5 | 10X10 | 0.05X0.05 | 0.001 |
S1X1-10X10-0.1X0.1 | 标定板 | 1X1 | 10X10 | 0.1X0.1 | 0.001 |
S2X2-10X10-0.2X0.2 | 标定板 | 2X2 | 10X10 | 0.2X0.2 | 0.001 |
S30x30-120X120-0.25x0.25 | 标定板 | 30X30 | 120X120 | 0.25X0.25 | 0.001 |
S30X30-100X100-0.3X0.3 | 标定板 | 30X30 | 100X100 | 0.3X0.3 | 0.001 |
S 49X49-49X49-1X1 | 标定板 | 49X49 | 49X49 | 1X1 | 0.001 |
S 50X50-25X25-2X2 | 标定板 | 50x50 | 25x25 | 2x2 | 0.001 |
S 51X51-17X17-3X3 | 标定板 | 51X51 | 17X17 | 3X3 | 0.001 |
S 36X36-9X9-4X4 | 标定板 | 36X36 | 9X9 | 4X4 | 0.001 |
S 45X45-9X9-5X5 | 标定板 | 45X45 | 9X9 | 5X5 | 0.001 |
S 95X95-19X19-5X5 | 标定板 | 95X95 | 19X19 | 5X5 | 0.001 |
S 80X80-80X80-1X1 | 标定板 | 80x80 | 80x80 | 1x1 | 0.001 |
S90x90-0.5x0.5 | 标定板 | 90x90 | 180x180 | 0.5x0.5 | 0.001 |
S105x105-3x3 | 标定板 | 105X105 | 35X35 | 3X3 | 0.001 |
S110X90-11X9-10X10 | 标定板 | 110X90 | 11X9 | 10X10 | 0.001 |
S114X114-3X3 | 标定板 | 114X114 | 38X38 | 3X3 | 0.001 |
|
|
|
|
|
|
S3x2.25-12x9-0.25x0.25 | 标定板 | 3X2.25 | 12X9 | 0.25 | 0.001 |
S 6x4.5-12X9-0.5X0.5 | 标定板 | 6X4.5 | 12X9 | 0.5X0.5 | 0.001 |
S 12X9-12X9-1X1 | 标定板 | 12X9 | 12X9 | 1X1 | 0.001 |
S18x13.5-12x9-1.5x1.5 | 标定板 | 18X13.5 | 12X9 | 1.5X1.5 | 0.001 |
S 24X18-12X9-2X2 | 标定板 | 24X18 | 12X9 | 2X2 | 0.001 |
S30x22.5-12x9-2.5x2.5 | 标定板 | 30X22.5 | 12X9 | 2.5X2.5 | 0.001 |
S 36X27-12X9-3X3 | 标定板 | 36X27 | 12X9 | 3X3 | 0.001 |
S42X31.5-12X9-3.5X3.5 | 标定板 | 42X31.5 | 12X9 | 3.5X3.5 | 0.001 |
S48X36-12X9-4X4 | 标定板 | 48X36 | 12X9 | 4X4 | 0.001 |
S 60X45-12X9-5X5 | 标定板 | 60X45 | 12X9 | 5X5 | 0.001 |
|
|
|
|
|
|
方格+圆点0.5-10mm |
|
|
|
|
|
|
其他 | 外形 | 有效长度 | 形状 |
|
|
十字分划尺 | 20-25 | 10mm | 正方形 |
|
|
多功能角度尺 | 33 |
| 圆形 |
|
|
5个图像（中间十字） | 75*25 |
| 长方形 |
|
|
方格+圆点0.5-10mm |
|
| 线对分辨率版 | 20,30,40,50,60,70,80 |
|
